Chamberlain Garage Door Sensor Yellow Light

If you’ve noticed a Chamberlain garage door sensor yellow light, you might be wondering what it means and if there’s a problem. The good news is that a yellow (or amber) LED on your garage door sensor is often normal, indicating that the sensor is powered and sending its infrared beam. However, issues can arise if the sensors are misaligned or malfunctioning. In this comprehensive guide, we’ll explain the meaning of the yellow light, explore common causes for any problems, and provide troubleshooting steps and maintenance tips. By the end, you’ll know exactly how to address a yellow sensor light and keep your garage door operating safely and smoothly.

Table of Contents

What Does the Chamberlain Garage Door Sensor Yellow Light Mean?

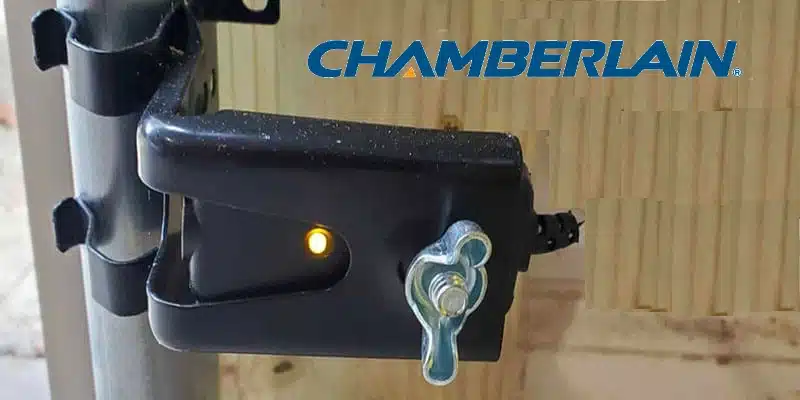

Illustration: A Chamberlain/LiftMaster safety sensor with an amber (yellow) LED indicator. One sensor typically has a yellow light (transmitter) while the other sensor has a green light (receiver) in Chamberlain systems.

On Chamberlain (and LiftMaster) garage door openers, the safety sensors come in pairs: one with a yellow (amber) LED and one with a green LED. The yellow-light sensor is the “sending” eye – it emits an invisible infrared beam across the doorway. The green-light sensor on the opposite side is the “receiving” eye, which detects that beam. When everything is working properly, one sensor will glow yellow and the other green, indicating the beam is being sent and received. In fact, a steady yellow or amber light generally indicates the transmitting sensor is functioning correctly.

Key points about the yellow light:

Yellow Light On (Steady): A solid yellow light means the sensor is powered and actively sending the infrared beam. This is usually a normal status and by itself does not signal an issue. The yellow light essentially confirms that the transmitter sensor is working. According to experts, the yellow light indicates the garage door sensor is successfully sending an infrared beam across the bottom of the door to check for obstructions. If your yellow LED is lit steady and the other sensor’s green LED is also lit, the door’s safety system is in alignment and functioning as intended.
Yellow Light Off: If the yellow light is not illuminated at all, that means the sending sensor is not powered or not sending a beam – making the safety system inoperative. In this case, neither sensor will work properly (the green light will also be off, since there’s no beam to receive). A non-lit yellow LED is a problem: the door may not close because the opener thinks something is wrong (it’s a safety hazard if the beam isn’t working). Common reasons for the yellow LED to be off include a broken or disconnected wire, a failed sensor eye, or a bad logic board in the opener. We’ll cover how to troubleshoot these issues below.
Blinking/Flashing Yellow Light: A blinking yellow light is not normal. If the Chamberlain garage door sensor’s yellow light is flickering or flashing, it often indicates a power issue or a loose wire on that sending sensor. In other words, the sensor might be getting intermittent power or could be misaligned. You’ll want to inspect the wiring and connections (see Troubleshooting Steps below) if you notice the yellow LED flicker. Ensuring the sensor is securely attached and its wires are intact can resolve most blinking yellow light problems.

In summary, one steady yellow and one steady green light is the ideal state for Chamberlain garage door safety sensors. This means the infrared beam is being sent and received with no obstruction. If the yellow light is off, or if either LED is blinking, something is amiss and needs attention.

Common Causes of Chamberlain Garage Door Sensor Yellow Light Issues

Normally, the yellow LED simply being on is a good sign. However, if your garage door won’t close or one of the sensor lights is behaving unexpectedly, there could be an underlying issue. Here are some common causes related to the Chamberlain garage door sensor yellow light not functioning as expected (e.g. turning off or blinking):

Sensor Misalignment or Obstruction: The most frequent cause of sensor issues is misalignment. If the sending and receiving eyes are not pointed directly at each other, the beam can’t reach, and the receiving sensor’s green light will go off or blink. The yellow sender might still be lit, but the sensors “aren’t properly communicating”. Even a slight bump to the sensor or obstructions (like dust, spider webs, or objects near the door) can knock the sensors out of alignment or block the beam. This will prevent the garage door from closing. If the yellow light is on, but the green isn’t, the photo eyes aren’t aligned or communicating. Misalignment triggers the safety system to keep the door open.
Dirty or Dusty Sensor Lenses: Dirt, dust, or cobwebs on the sensor’s lenses can partially block the infrared beam. Over time, garage sensors get dirty (they sit near the floor, after all). A grimy lens might make the receiving sensor think something is in the way, especially in low-light conditions, causing the green light to flicker. The yellow light may remain on (since it’s still sending), but the beam might not effectively reach the other side. Grime is an often overlooked cause of sensor issues.
Wiring Issues or Loose Connections: Each sensor is attached to the garage door opener’s motor unit by thin low-voltage wires. If a wire is loose, frayed, or cut, the sensor may lose power. A loose wire to the yellow-light sensor could make its LED go off or blink sporadically (hence the blinking yellow symptom). Likewise, a wiring short or disconnection will shut off power completely (yellow LED off). Loose or damaged wires can prevent the sensors from functioning. Rodents, wear and tear, or accidental damage can affect the cables running along your garage wall or ceiling.
Bright Sunlight Interference: This one might sound odd, but direct sunlight shining onto the receiving sensor can overwhelm it. In certain instances, strong sunlight hitting the sensor eye can mimic the effect of an obstruction. The sensor’s green light may turn off because it can’t “see” the infrared beam in the glare. Your yellow sending sensor would still be lit. According to garage door experts, bright sunlight shining directly on the receiving sensor can sometimes interfere with the infrared beam. Shading the sensor or repositioning it slightly can resolve this issue. If your garage door only has trouble closing at certain times of day when the sun is low, this could be the culprit.
Faulty Sensor or Component Failure: Less commonly, the sensor unit itself could be faulty or failing. A defective sending sensor might not power on (no yellow light), or a bad receiving sensor might not register the beam (no green light). Additionally, a bad logic board in the opener (the opener’s internal circuit) can also cause sensor LEDs to malfunction. These cases are rarer, but if you’ve ruled out all other causes, you might consider replacing the sensors or contacting Chamberlain for support.

Understanding these causes can help you pinpoint why your Chamberlain garage door sensor’s yellow light might not be behaving normally. Next, we’ll walk through how to troubleshoot and fix the issue.

How to Troubleshoot a Chamberlain Garage Door Sensor Yellow Light Issue

If your garage door won’t close and you suspect a sensor issue (e.g. one sensor’s yellow light is off, or the green light is flashing), don’t worry. You can often fix these problems yourself with some simple steps. Below is a step-by-step troubleshooting guide for Chamberlain (and compatible LiftMaster/Craftsman) garage door sensors:

Check for Obstructions: Inspect the area between the two sensors. Remove any debris, boxes, spider webs, or objects that might be blocking the infrared beam. Even small obstructions or dirt on the lens can break the beam. Make sure the doorway is clear and the sensor lenses are visibly clean.
Clean the Sensor Lenses: Using a soft, dry cloth, gently wipe the sensor eyes on both the yellow and green sensor units. Remove dust or grime that has accumulated on the little glass/plastic lens. Do not use solvents or water, just a dry microfiber cloth (or slightly damp if needed, then dry). Clear lenses help ensure the beam can travel unimpeded.
Realign the Sensors: Loosen the wing nut on one of the sensor brackets (usually the receiving sensor with the green light). Adjust the sensor’s position until both sensors face each other directly. It helps to watch the LED lights while doing this – the green receiver light will come on solid when alignment is correct. Make small adjustments (up, down, left, right) until the green light stays solid. Then re-tighten the wing nuts. Proper alignment should result in one solid yellow and one solid green LED. (Tip: Both sensors should be 6 inches off the ground and mounted at the same height on each side of the door.)
Inspect and Secure the Wiring: Trace the thin wires from each sensor up to where they connect to the garage door opener unit. Ensure the wires are firmly connected (no loose screws at the terminal) and not damaged. If you find loose wires, tighten them, and if you see damaged or frayed wires, consider replacing them or splicing in a new section. The wiring should be stapled neatly and not dangling where it can snag. Remember, a blinking yellow light may indicate a loose wire on the sending sensor, so double-check the yellow sensor’s wiring in particular. Illustration: A technician inspecting the wiring connections of garage door safety sensors. Damaged or loose wires can cause the yellow light to go out or blink.
Check for Sunlight (if applicable): As mentioned earlier, if your garage is brightly lit by sun at certain times, try to shade the sensors temporarily and see if the sensor lights behave normally. You can install small visors (even a piece of cardboard) around the sensors to shield them from direct sunlight. This is more of an issue in specific installations, but it’s worth ruling out if you’ve tried everything and the problem occurs mostly on sunny days.
Power Cycle the Opener: Sometimes, the garage door opener’s electronics may need a reset. Unplug the opener from power (or shut off its breaker) for about 30 seconds, then plug it back in. This can recalibrate the system and clear any minor errors. After powering back on, check the sensor lights again. This step is quick and can resolve odd glitches.
Test the Door and Sensors: After each adjustment, test your garage door. Use the wall button or remote to try closing the door. If the sensors are now aligned and functioning, the door should close normally. Tip: You can further test the safety reversal system by placing an object (like a roll of paper towels or a broom) in the sensor path and attempting to close the door – the door should reverse upon sensing the object. This confirms the sensors properly detect obstructions.
Still Not Working? If you’ve tried all the above and one of the sensor lights (yellow or green) is still off or flashing, there may be a hardware issue. At this point, you might consider replacing the sensors with a new pair (Chamberlain sensors are usually sold in kits with one amber and one green sensor, e.g., the Chamberlain/LiftMaster 41A5034 Safety Sensor kit). Replacing them is usually straightforward: it involves wiring the new units in place of the old ones. Always get the correct sensor model compatible with your opener. If you’re not comfortable doing this, or if a new sensor doesn’t fix the issue, move on to the next step.
Call a Professional: A garage door technician can quickly diagnose stubborn sensor problems. There could be a deeper electrical issue or the garage door opener’s logic board may be malfunctioning. Professionals have specialized tools to test the sensors and opener circuitry. Don’t hesitate to contact a Chamberlain dealer or garage door repair service if the issue persists after your troubleshooting. Remember, the safety sensors are critical for preventing accidents, so you want them fully operational. (Note: If the sensors aren’t working, the garage door will not close via the opener as a safety measure – you would have to close it manually in the meantime.)

By following these steps, you can resolve the majority of issues related to the Chamberlain garage door sensor yellow light and the corresponding green light. In many cases, a simple realignment or cleaning does the trick!

Chamberlain Garage Door Sensor Maintenance Tips to Prevent Yellow Light Issues

Once your sensors are back to normal (one yellow LED and one green LED solidly lit), it’s wise to perform some basic maintenance to avoid future problems. General consumers can easily do the following to keep their Chamberlain garage door sensors in top shape:

Keep the Sensors Clean: Dust off the lenses regularly. Garages can be dusty and dirty, and sensor eyes are low to the ground. Wipe the sensor lens gently with a soft cloth every few months, or whenever you notice dirt. This ensures the infrared beam can shine through clearly. Avoid using chemicals on the sensor eye; a dry or slightly damp cloth is sufficient.
Ensure Sensors Stay Aligned: After you’ve aligned the sensors, make sure they remain secure. Occasionally check that the sensor brackets are tight (the wing nuts should be snug). If you have kids playing around, or you’re moving items near the sensors, be mindful not to knock them. A sensor that gets nudged out of alignment can cause the green light to flicker off. Some homeowners even mark the aligned position on the wall or bracket so they can quickly realign if bumped.
Inspect the Wiring Periodically: Take a glance at the sensor wires along the wall/ceiling whenever you’re in the garage. Look for any signs of wear: fraying, chewed spots, or loose staples. If you see a problem, fix it before it causes the sensor to lose power. Re-secure any loose wires and replace any damaged sections. Keeping the wiring intact will ensure the yellow light stays powered continuously (no flickering).
Protect from Sunlight: If your sensor setup is prone to direct sunlight, consider adding a small hood or shield around the sensors. Even a piece of angled PVC or a sunshade accessory from Chamberlain can do the job. This will prevent UV rays from interfering with the receiver. It’s a “set it and forget it” solution that can save you the headache of intermittent sensor issues on sunny days.
Test the Sensors Monthly: It’s recommended to test your garage door safety sensors about once a month. Simply place an object in the door path and attempt to close the door (as described earlier). The door should not close on the object – it should reverse as soon as the sensor beam is broken. Regular testing gives you confidence that the sensors (and the yellow/green lights) are working correctly to protect your family and pets.

By following these maintenance tips, you’ll minimize the chances of encountering problems with the Chamberlain garage door sensor yellow light. Consistent care ensures your garage door system remains safe and reliable.

Chamberlain Garage Door Sensor Yellow Light FAQs

Below are some frequently asked questions that homeowners have about the yellow light on Chamberlain garage door sensors and how the safety system works:

Q: Why is one of my Chamberlain garage door sensor lights yellow and the other green?

A: Chamberlain (and its sister brands LiftMaster/Craftsman) design their safety sensors this way. One sensor has a yellow light and the other a green light by design. The yellow-light sensor is the transmitter (sending the infrared beam), and the green-light sensor is the receiver. If you see one solid yellow and one solid green, it means the system is aligned and working correctly – the beam is being sent and received without issues.

This is normal and indicates your safety reversal system is active. (In contrast, some other brands use different color combinations, like Genie which might use red and green LEDs.) So don’t worry – one yellow and one green light on a Chamberlain garage door sensor pair is the expected behavior when things are functioning properly.

Q: What does it mean if the Chamberlain garage door sensor yellow light is blinking or off?

A: A blinking or off yellow light signals a problem. A steady yellow should always be lit on the sending sensor when it has power. If it’s blinking, it often indicates a power issue or loose wiring. Check that the sensor’s wire connections are tight and not damaged. An off (unlit) yellow light means the sensor is not getting power or has failed. In that case, the door opener has essentially “shut down” the safety beam – and the green light on the other side will also be off. First, verify if a wire came loose or broke, as this is a common cause.

If wiring is fine and the yellow LED still won’t come on, the sensor may be bad and need replacement. Always address a non-working sensor promptly, because when the yellow sending eye isn’t lit, your garage door won’t close via the opener for safety reasons. (You can close it manually by holding down the wall button in emergency, but it’s best to fix the sensor ASAP.)

Q: Will a yellow sensor light issue prevent my garage door from closing or opening?

A: Yes, if the sensors are not functioning or aligned, the garage door will not close using the opener. The opener’s lights might flash and it will refuse to close, since it “thinks” something is under the door. The yellow light itself being on is not an issue – but if it’s off or the green light is not solid, the opener will interpret that as a sensor fault or obstruction and keep the door open for safety. However, the sensors do not affect opening the door (they only impact the closing safety circuit).

So a yellow light issue won’t prevent the door from opening; it only stops closing. If your door isn’t opening, that’s likely a different issue (e.g. remote control, springs, etc.), not the sensors. For help with a door that won’t open, you’d need to look at other troubleshooting or see our guide on Garage Door Won’t Open .

Q: How do I align Chamberlain garage door sensors to fix the yellow light problem?

A: Aligning the sensors is straightforward and often resolves sensor light problems. Here’s a quick recap: Loosen the wing nut on the receiving (green light) sensor, since it’s usually the one you adjust. Move the sensor until it faces the sending (yellow light) sensor directly – a good trick is to adjust it until the green LED turns solid green (no flicker). Once you get a solid green light (with the other side solid amber/yellow), tighten the wing nut to lock that position. Both sensor lights should now be solid, and your door should close properly.

If you’re still having trouble, make sure nothing is bumping the sensors and consider watching Chamberlain’s official how-to video or referencing the Chamberlain support article on sensor alignment for more detailed instructions .
