Top Reasons to Choose the LiftMaster 8500W for Your Garage

The LiftMaster 8500W is one of the most advanced jackshaft garage door openers on the market right now. If you want a high-performance opener that doesn’t take up a lot of room, this is the one for you. This wall-mounted opener is great for garages with low ceilings or not much room above them. It works with sectional garage doors that have torsion springs. It has a very quiet DC motor, built-in Wi-Fi, battery backup, and a set of smart functions powered by myQ®. The 8500W is a great choice for homeowners who want to upgrade their garage or for professional installers who need a reliable device. It has better functionality, security, and smart home connection.

Door Compatibility for the LiftMaster 8500W (Type & Size)

• Door Type: The 8500W is designed exclusively for sectional garage doors that use a torsion bar and cable drum system. This includes standard lift and high-lift sectional doors. It is not compatible with one-piece tilt-up doors, jamb doors, or roll-up coiling doors, and generally cannot be used with extension-spring systems unless they are converted to torsion spring operation. (Additionally, the opener is not compatible with Wayne Dalton TorqueMaster® spring systems, which use an enclosed torsion spring tube, unless that system is converted – the 8500W needs a standard 1″ solid torsion shaft to attach to.)
• Torsion Bar Requirements: The garage door must have a torsion bar (steel shaft) with standard cable drums. The bar should be 1″ diameter (2.5 cm) – which is the typical size for residential doors. The 8500W can work with drum diameters from 4″ to 6″ (standard and high-lift drums). It is not designed for larger 8″ commercial drums or any “reverse-wound” drums (drums that spool cable from the bottom – often used in some specialty low-headroom setups). In short, typical residential torsion setups are fine, but certain specialized hardware is outside its spec.
• Maximum Door Size: Supports doors up to 14 feet tall and up to 18 feet wide, with a maximum area of about 180 sq. ft.. (For example, a 14′ high × 12′ wide door, or a 7′ high × 18′ wide double door, are within this range.) Doors taller than 14′ or wider than 18′ are beyond its rated capacity.
• Maximum Door Weight: Rated for a door up to 850 lbs (385 kg) – with the condition that the door is properly balanced and using at least a 15″ track radius. This is a very high weight capacity, suitable for heavy oversize insulated wooden doors, etc. For doors near this weight, the springs must be balanced correctly (so that the opener is not actually lifting all that weight by itself). Without the battery or on smaller track radius, the practical weight capacity is lower (approx. 650 lbs per some sources). Note: If your door is extremely heavy or has high lift >54″, ensure it’s well-balanced and consider adding the second lock for stability (see Accessories).
• High-Lift & Vertical Lift: The 8500W can be used on high-lift doors (common for tall ceilings) up to about 54″ of high-lift rise before the horizontal tracks. Fully vertical lift doors (where the door goes straight up without horizontal tracks) are not officially supported if the vertical lift exceeds that amount – such applications typically require a commercial jackshaft operator. So, for a high-lift door, if the lift is under 4.5 feet, the 8500W should work (and indeed it’s often used in residential high-lift conversions). For low-headroom (dual-track) configurations: the 8500W is not compatible with dual horizontal track (“low clearance”) systems because those often use odd cable routing or hardware that the standard cable tensioner might not accommodate. If a door has a low-headroom kit, it may need to be reconfigured or an alternate mounting used – consult a professional in those cases.
• Balanced Door Requirement: As with any opener, the garage door must be well-balanced (springs properly calibrated). You should be able to lift the door manually without great effort. The 8500W comes with a Cable Tension Monitor sensor that will stop the opener if it detects slack in the cables (which can happen if a spring breaks or the door is unbalanced). This helps protect the system and prevent damage. Before installing on an existing door, any spring or cable issues must be resolved.

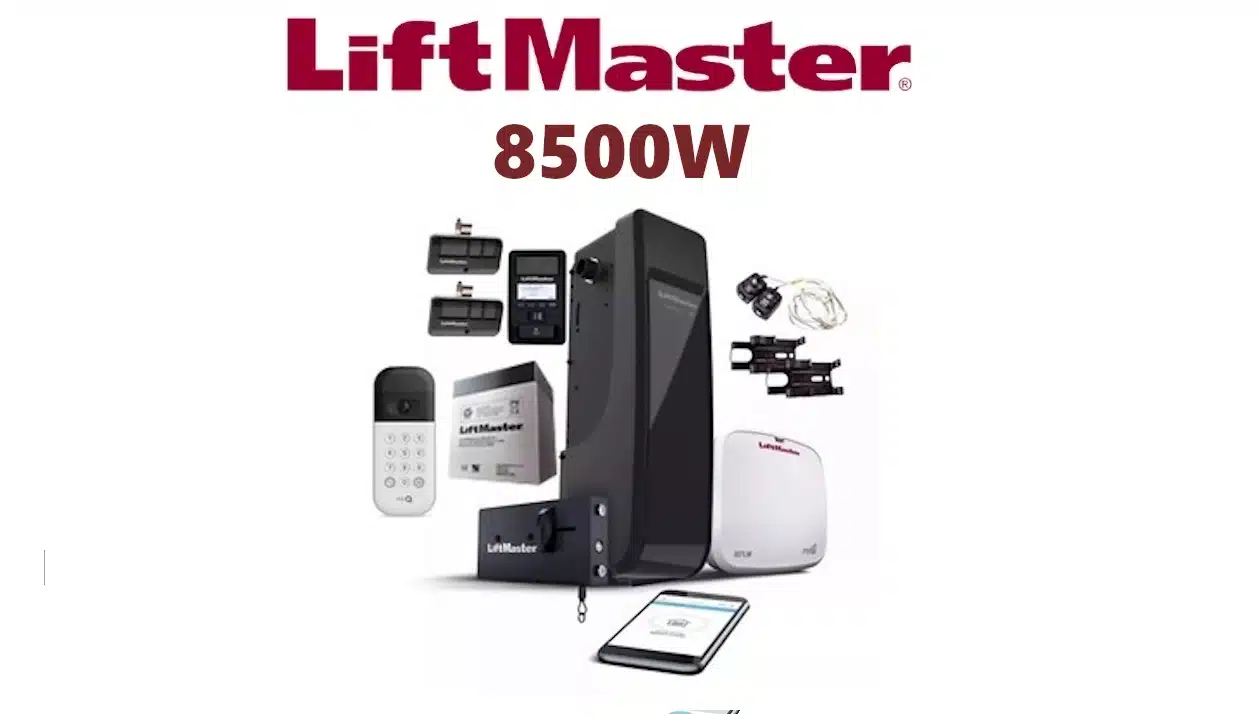

Included Accessories with the LiftMaster 8500W (Standard Package)

The LiftMaster 8500W package is fully outfitted with essential accessories for operation and security. All of the following come in the standard box:

• Smart Control Panel (880LMW): Multi-function wall console with LCD display and motion sensor. Mounts inside the garage; used for programming, Wi-Fi setup, and controlling the opener. Detects motion to turn on lights automatically. (Wired connection; includes temperature display and timer-to-close settings.)
• 3-Button Visor Remote (893MAX): A portable remote control capable of operating up to three garage doors or myQ light devices. Uses Security+ 2.0 rolling codes. Comes with a visor clip for in-car use. (893MAX is backwards-compatible with most LiftMaster openers since 1993, and is a Security+ 2.0 “Max” series remote.)
• MyQ Remote LED Light (827LM): A wireless 1,500 lumen LED light fixture. This light plugs into a standard outlet (no wiring to opener) and is programmed to the opener via myQ. It can be mounted anywhere in the garage (often on the ceiling) to provide bright illumination whenever the opener is used or when activated via app or motion sensor. Note: The 827LM is required for features like Timer-to-Close and smartphone control to function, as it flashes to signal door closing. The kit includes one 827LM light; the opener can support multiple if desired (see Optional Accessories).
• Automatic Garage Door Lock (841LM): An electric deadbolt lock that automatically engages to the door track every time the door closes. This steel locking bolt makes the closed door virtually impenetrable, preventing forced manual opening. The 8500W includes one 841LM lock (mounts to the track, usually near the lower track bracket). The opener supports two locks (one for each side of the door) for extra security or for wind-load reinforcement on wide doors. (If a second lock is added, it connects to the second lock terminal on the opener; the logic board can drive two locks simultaneously.)
• Battery Backup Unit (485LM): The rechargeable 12V battery pack, pre-installed in the opener (provides standby power). Allows ~20 cycles during outages and ensures compliance with safety laws. (The battery is typically inside a compartment on the opener – the unit ships with it in place or to be inserted during installation.)
• The Protector System® Safety Sensors: A pair of infrared safety reversing sensors (photo-eyes) that mount at the base of the door tracks. These project an invisible beam across the door opening. If the beam is broken while the door is closing, the opener will stop and reverse, preventing entrapment or injury. (Includes wiring and mounting brackets. This is a UL-required safety feature on all modern openers.)
• Cable Tension Monitor: A specialized sensor that mounts near the torsion drum and contacts the cables. It detects any slack or loosening of the garage door cables. If slack is sensed, the opener will stop or reverse to avoid a cable coming off the drum. This is particularly important for jackshaft openers since loss of tension could lead to uncontrolled door movement. The 8500W’s cable tension monitor is included and must be installed for the opener to function (the logic will not close the door without a working tension sensor). (The unit in the box is set up for left-side installation by default; instructions are provided to convert for right-side if needed).
• Hardware and Manuals: A complete installation hardware kit (brackets, fasteners, etc.) and documentation are included. Notably, the hardware pack contains mounting bracket for the opener, door arm for manual release, door cable pulley for the tension sensor, warning labels, etc. The warranty for the 8500W is lifetime on the motor, 5 years on parts, and 1 year on battery and accessories.

(Some retailers or professional installers may bundle additional items like a second remote or a wireless keypad, but the above list represents the standard contents from LiftMaster.)

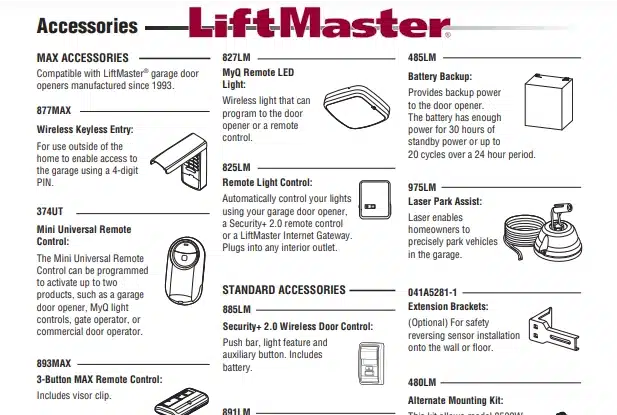

Optional Accessories and Add-Ons

One of the strengths of the 8500W is its compatibility with a wide range of LiftMaster/MyQ accessories for expanded functionality. Below is a list of notable optional accessories and upgrades that work with the 8500W:

• Wireless Keyless Entry Keypad (877LM / 877MAX): A battery-powered exterior keypad that allows entry by punching a 4-digit PIN code. Mounts outside the garage door for convenient, secure access without a remote. The 877LM/877MAX uses Security+ 2.0 and is compatible with the 8500W (up to 4 keyless entries can be learned). This is useful for family members or as a backup if you don’t have a remote.
• Additional Remote Controls: The opener can be paired with various LiftMaster remote models. Examples:
  • 891LM: Single-button Security+ 2.0 remote (for controlling just one door – good for motorcycles, etc.).
  • 893LM / 893MAX: 3-button Security+ 2.0 remotes (identical function to the included 893MAX, often used for multi-car families or to have a spare).
  • 890MAX: Mini keychain 3-button remote (Security+ 2.0), a compact remote for portability.
  • 374UT: Universal mini remote that can work on Security+ 2.0 and other brands (LiftMaster lists it as compatible for those needing a small form factor universal remote).
  • HomeLink Repeater Kit: If you have an older vehicle with HomeLink that cannot directly program to Security+ 2.0, LiftMaster offers a bridge (repeater) to make it compatible. (HomeLink compatibility is built-in for version 4+ cars; the repeater (model HOMELINK RPTR) is only needed for very old HomeLink systems.)
• Additional MyQ Remote LED Lights (827LM): You can add extra LED light units to your system. Each 827LM light can be programmed to the opener or to a remote, and multiple lights can be synchronized. For larger garages or more illumination, you might install 2 or 3 of these around the garage. (Each is 1,500 lumens. The opener’s myQ radio can support up to 16 myQ devices including lights.) Extra lights are useful because the 8500W itself has no built-in light fixture – all lighting is provided by these remote lamps.
• Second Automatic Lock (841LM): As mentioned, the 8500W supports a second motorized deadbolt lock. In very large or wind-rated doors, installing a lock on each side of the door can bolster security and stability (preventing one side of the door from being pried or flexing in high winds). The second 841LM ties into the opener’s 2nd lock terminal (the logic board has connections for “Lock 1” and “Lock 2”). LiftMaster notes you can have “2 max” locks on this opener.
• Laser Parking Assist (975LM): A garage parking accessory that projects a red laser dot from the ceiling when your vehicle is in the right position. It helps drivers park in the correct spot every time. The 975LM is compatible with myQ openers; it plugs into the ceiling and can be activated by the opener. (In the manual’s accessories list, this is shown as an option to assist parking). It’s not directly integrated with the opener’s logic but is a convenience add-on many pair with their opener.
• Alternate Mounting Bracket (480LM): A special bracket kit that allows the 8500W to be mounted in unusual circumstances, such as when there is not enough side-room on the torsion bar. For example, if the torsion bar is very short or obstructed, the 480LM kit lets you mount the opener below the torsion shaft or on the wall in a different orientation. This is typically used by professional installers when standard mounting isn’t feasible.
• Alternate Power System (580LM): This is a standby power system used on some jackshaft openers. For the 8500W (which already has an integrated battery), the 580LM may refer to an external power supply option or solar kit for special applications. (It was originally developed for an older model – not commonly needed on the 8500W since it has 485LM internal battery. It might be listed for reference if one needs an external battery cabinet or solar charging for detached garages.)
• myQ Home Bridge (819LMB): An accessory that adds Apple® HomeKit compatibility to myQ openers. The 819LMB bridges the myQ system to HomeKit/Siri (and also enables HomeKit Secure Video for compatible cameras). If you want to control the 8500W with Siri voice commands or include it in HomeKit automations, you’d use this bridge. It connects to your Wi-Fi and links to the opener through the cloud (one bridge can support multiple myQ devices).
• Smart Garage Camera (MYQ-SGC1WLM): A myQ-connected security camera for the garage. While the 8500W itself does not have a built-in camera, LiftMaster offers this add-on camera that can be placed on a shelf or magnetically attached to the opener housing. It pairs with the myQ app, letting you view live video of your garage remotely. The camera records in 1080p HD with night vision and two-way audio. It is compatible with any myQ-enabled opener, including the 8500W. (LiftMaster also sells a bundle “8500WCam” which includes this camera in the package for those who want video monitoring from day one.)
• myQ Video Keypad (Model VKP1-LM): A newer accessory that combines a wireless keypad with a built-in video camera. It allows you to see and communicate with people at your garage door and grant access via PIN codes. The VKP1-LM works with Security+2.0 openers and connects to Wi-Fi/myQ similar to the garage camera. It’s an optional device for those wanting an integrated keypad + camera at the exterior of the garage.
• Garage Door Monitor/Closer: (Older accessory, model 829LM) A battery-powered tabletop monitor that can display if the garage door is open or closed and even close it remotely. Since the 8500W can be monitored via smartphone, this accessory is largely superseded by the myQ app, but it is technically compatible.
• Gate Operator Integration: If you have a LiftMaster gate opener, you can pair it to the 8500W’s myQ system via a myQ Gate Control Module. This lets you control a gate from the same app. Again, not directly an accessory for the 8500W, but part of the myQ ecosystem it participates in.

(All Security+2.0 accessories (remotes, keypads, etc.) that LiftMaster offers are generally compatible, as well as all myQ-enabled accessories for lighting and monitoring. The above list highlights the most common or relevant ones. Always ensure additional accessories are programmed per their manuals – the 8500W’s control panel or learn button is used for programming them.)

Safety Features and Certifications

Safety is a paramount focus of the 8500W. It includes multiple layers of protection and meets all required industry standards:

• Safety Reversing Sensors: The Protector System® photoelectric sensors create an invisible beam across the door opening. If a person, pet, or object breaks the beam while the door is closing, the opener will stop and reverse to full open. These are installed 4-6 inches off the floor on either side of the door. They also trigger the opener’s light to turn on if the beam is broken. This prevents entrapment and is mandated by UL® safety standards (UL 325). The 8500W indeed “meets all UL325 requirements.”
• Automatic Garage Door Lock: The included 841LM power lock is a security device but also a safety feature in that it prevents the door from being opened manually by force. Once the door closes, the lock deadbolts into the track, and it only releases when the opener activates to open the door. This ensures the door stays securely closed (virtually “locked like a vault”). It’s the first garage door opener to come standard with an automatic lock, and it’s been UL-tested for safety. If the door is opened via the opener, the lock automatically retracts; if a battery backup is in use during power outage, the system is designed to default unlock for safety when opening.
• Cable Tension Monitor: As described, this sensor ensures the door’s lifting cables remain under tension. If a cable were to slack or unravel (which could happen if a spring breaks or in an obstruction situation), the monitor will detect it and cause the door to stop or reverse. This prevents a dangerous situation of a cable detaching or the door dropping unevenly. The opener will not attempt to close if it senses the cable tension monitor is not properly contacting the cable. (The manual even notes that if two monitors are installed – one on each side for redundancy – the opener will stop if either triggers).
• PosiLock® System: In addition to the physical lock, the 8500W’s internal PosiLock mechanism electronically secures the door in place when it’s closed. This is essentially an electronic logic that senses if someone tries to force the door open – the motor will resist and the door stays locked. It’s a garage door equivalent of a door latch. PosiLock is engaged every time the door closes (even if the power lock isn’t used, PosiLock will keep the motor output shaft from back-driving).
• Rolling Code Transmitters: Security+ 2.0® is not only a convenience feature but a security one. With every press of the remote, a new code (out of billions of possibilities) is sent. This prevents code grabbing/replay attacks that could open your door. The encryption and frequency-hopping (FHSS) radio add layers of security to wireless controls – only your programmed remotes will work. This system is also backward compatible to older Security+ remotes if needed (though they won’t use the rolling algorithm), and it’s immune to most interference.
• Timer-to-Close: The opener has a Timer-to-Close (TTC) feature which can automatically close the door after a preset time (adjustable via the control panel). This is a safety convenience – it helps ensure the door isn’t accidentally left open. TTC can be set (e.g. 1 minute, 5 minutes, or a custom interval) after which, if the door was left open, it will beep, flash the light as warning, then close the door automatically. This is considered an “unattended operation” feature, so by UL rules it will only function if the safety sensors are installed and working, and the myQ light is present to flash as a warning. The 8500W’s TTC is disabled by default and must be enabled by the user if desired. When active, an Alert-2-Close signal (audible beeper and flashing light) will trigger 5-10 seconds before the door moves, to warn anyone nearby. (UL325 allows unattended closing only with these precautions.)
• Motion Detection Lighting: The included Smart Control Panel’s motion sensor ties into the lighting system. If someone enters the garage (breaking the infrared motion sensor on the wall console), the myQ LED light(s) will turn on automatically. This is a safety feature to ensure a dark garage is illuminated to avoid tripping or accidents. The light will stay on for a preset interval (programmable) after motion stops. You can also set the light to come on whenever the door is activated.
• Manual Emergency Release: The 8500W has an interior manual release handle (typically a red cord) that physically disconnects the opener from the door. In case of an emergency or if you need to operate the door manually (e.g. prolonged power outage or maintenance), pulling this cord will allow you to lift the door by hand. The handle is usually mounted near the opener and should be installed at roughly 6 feet from the floor. This mechanism is a required safety feature; it’s important that it’s accessible and that users know how to use it.
• Soft Start/Stop & Force Guard: The DC motor controller soft-start/soft-stops the door’s travel, which not only reduces noise but also reduces mechanical shock, making it safer and prolonging the life of the door and opener. The opener also constantly monitors the force needed to move the door. If it encounters an obstruction (something impeding door travel), it will detect the spike in force and reverse (when closing) or stop (when opening) as needed. This automatic force profiling adjusts with changes in weather and door hardware friction.
• Compliance and Certification: The LiftMaster 8500W is UL-listed (UL 325) for US safety standards and is CSA certified for Canada (CSA C22.2 No. 247). It meets California’s battery backup requirements (SB-969). The device also FCC certified for RF interference compliance. In terms of overall safety pedigree, LiftMaster (Chamberlain Group) has over 40 years of experience, and the 8500W embodies the latest safety tech for garage operators. Users should always have it installed per the manual and test the safety reversal system monthly using a 2×4 or the safety reversal test outlined in the manual. When properly installed, the 8500W provides a high level of safety and security for daily use.

Installation Requirements for the LiftMaster 8500W

Installing a wall-mount opener like the 8500W has some specific requirements. Below are key limitations and requirements to be aware of:

• Professional Installation Recommended: First and foremost, LiftMaster recommends professional installation for this opener. While it is possible for a knowledgeable DIYer to install, there are many safety-critical steps (torque on the torsion bar, wiring, etc.) that a trained installer will handle correctly. The device is heavy (~38 lbs) and must be securely fastened to the wall or a mounting surface that can support it. Additionally, improper installation (especially of the cable tension monitor or safety sensors) can result in the opener not functioning or unsafe operation. In short: if in doubt, hire a pro.
• Structural Mounting Surface: The 8500W must be mounted to a solid surface (wall or mounting bracket) capable of supporting its weight and operation. Typically it is lag-bolted into a wood jamb or concrete wall at the torsion spring mounting point. If mounting to concrete or masonry, use proper anchors (and it’s advised to attach a wooden backing plate if needed). The unit should be level and aligned with the torsion bar.
• Torsion Bar Compatibility: As noted in Door Compatibility: you need a standard 1″ steel torsion bar extending out past the bearing plate ~1.5″. If your torsion springs are the TorqueMaster type (enclosed in tube) or your torsion bar doesn’t extend, you’ll have to convert to a standard torsion setup or possibly use a different opener. The opener cannot attach to a TorqueMaster system (which has no exposed shaft). Also, if the torsion bar is too short on one side, you may use the alternate mounting kit (480LM) to mount the opener below or cut a longer shaft.
• Side Room Clearance: Ensure you have at least 8 inches of side clearance from the edge of the garage door to the side wall or obstruction, so the opener can be installed next to the drum. LiftMaster’s specs call for ~8.5″ minimum. This distance is needed so the unit doesn’t interfere with the door or wall during operation. If you have less space (e.g. garage closely flanks the door), the 480LM bracket might allow a workaround by offsetting the opener. If there is a pipe or beam in the way, consider relocation or another opener style.
• Headroom: The opener itself requires only a few inches of headroom above the torsion bar (minimum 3″ above the torsion bar center). This is generally not an issue in most installations (3″ is modest), but in extremely tight above-door clearances, double-check this. The safety sensors typically mount 6″ above the floor; if the standard brackets don’t fit (e.g. metal roll-up doors), extension brackets may be needed.
• Power Outlet: A 120V outlet must be within 6 feet of the opener’s location. If none is available, have an electrician install one (don’t use extension cords permanently). Ideally, the outlet is on the ceiling or high on the wall near the opener. The opener draws about 1.5A normally, so a dedicated circuit is not strictly required but avoid overloading the circuit with other heavy appliances.
• Door Track/Hardware: Not compatible with all track types – specifically, low-clearance double-track systems or certain high-lift setups may not work without modifications. If your door has a dual-track low headroom kit (with an extra set of rollers), the cable routing is often different (tighter wrap on drums) and the cable tensioner might not fit or function correctly. The opener also is not for use with swing-up doors or doors without tracks. If you have a one-piece door and want a wall-mount opener, a different model or conversion would be needed.
• Wayne Dalton Doors: As mentioned, Wayne Dalton’s TorqueMaster spring system is not supported. The opener expects a standard torsion spring with exposed shaft and drums. Converting a TorqueMaster door to standard torsion springs is possible and often done if one wants to use this opener. Similarly, if your door uses a proprietary spring system, consult with a garage door professional.
• Weight and Balance: The door must be balanced such that you can open it manually without excessive force. The opener will sense if the door is too heavy (it may go into force limit errors). A door over ~850 lbs is beyond spec. Even at lower weights, proper spring tension is crucial. If springs are old or weak, replace them before installing the opener. Test by lifting the door halfway – it should stay in place; if it slams down or flies up, the springs need adjustment.
• Maintenance: The 8500W will require periodic maintenance like any opener. Keep the torsion springs and door hardware in good condition (lubricate bearings, hinges, etc.). The opener’s chain/sprocket drive is internal and permanently lubricated – no user service needed there. Do test the safety sensors and reversal monthly. The opener has a Maintenance Alert System that can remind you (after a certain number of cycles) to service your door. Given the high lifting capacity, ensure your garage door’s structural integrity (tracks, hinges, rollers) is up to the task as well.
• Environmental Installation: The opener itself should ideally be in a protected indoor location (standard for garages). It’s rated for cold and hot environments, but extreme cold can reduce battery efficiency. If your garage is unheated and sees sub-zero temperatures, the battery backup performance will be diminished, though the unit is rated down to -31°F. Avoid direct water exposure (it’s not meant to get wet). In coastal areas or high humidity, ensure the metal components are regularly inspected for corrosion.
• Multiple Doors: Note that one 8500W unit operates one door. If you have two garage doors, you would need two openers (each door needs its own). The included 893MAX remote can control up to three openers, so you can use one remote for multiple 8500Ws. The myQ app can manage multiple openers as well. Just ensure each door meets the requirements.
• Setup and Programming: Initial setup involves mounting the unit, attaching it to the torsion bar, installing the lock, sensors, tension monitor, etc., and then programming travel limits and force. The smart control panel or the learn button is used to set the up/down limits and force (the opener has an automatic limit setting routine). The Wi-Fi pairing is done after the door operates fully at least once. Follow the step-by-step in the manual closely, especially for the cable tension monitor wiring and lock wiring. Tip: The opener will not run (will only beep) if the safety sensors or cable monitor are not connected/aligned – this is a common installation hiccup.
• Limitations Summary (from LiftMaster/installer notes): “These units do not work with all types of track systems. Not compatible with low-clearance dual tracks. Not compatible with roll-up coil doors. Must have a 1″ torsion tube with cables. Need ~8″ of side clearance. Not compatible with TorqueMaster spring systems.” This is the boiled-down caution for buyers. As long as your setup is a standard sectional door with normal torsion springs and some side room, the 8500W should be an excellent choice. Otherwise, consult with a dealer for alternatives or necessary modifications.

In conclusion, the LiftMaster 8500W is a feature-packed, wall-mount garage door opener that combines a powerful DC motor and space-saving design with smart connectivity and robust security features. Its technical specifications – from the 24V DC motor and battery backup to the automatic deadbolt lock – make it stand out in its class. It’s capable of handling large, heavy doors quietly and smoothly, provided the installation requirements are met and the door is properly configured. With the myQ ecosystem integration, users get the convenience of smartphone control and the peace of mind of safety sensors, automatic locking, and battery backup. Always refer to the official LiftMaster installation manual and user guide for detailed instructions, and enjoy the added storage space and modern functionality that the 8500W brings to your garage.
