The LiftMaster (Chamberlain Group) line offers several series of residential openers. The Elite Series is the high-end, feature-rich family, while the Professional series (sometimes marketed through Chamberlain) covers standard chain- or belt-drive models. Below we summarize three representative models and the Elite Series category in general.
LiftMaster Elite Series (3/4 HP) – Overview
The LiftMaster Elite Series is a premium line designed for heavier doors and high-end homes. It includes both belt-drive and heavy-duty chain-drive models with DC motors (often P3™ motors) that deliver quiet, powerful operation. Elite openers feature Motor Vibration Isolation System (MVIS®) for near-silent runs, and an integrated Smart Control Panel® on the opener head for easy programming of remotes and diagnostics. Most Elite models have built-in Wi‑Fi (myQ®) connectivity for smartphone control and alerts.
Many also include a battery backup (the EverCharge® Standby Power System) that can run the opener through dozens of cycles (e.g. 40 cycles/24 hr for LiftMaster 8550W) when AC power is out. Elite units come with two bright 100 W bulbs (with adjustable delay) and steel-reinforced belts or enclosed chain drives for durability. Security is strong: they use Security+ 2.0® rolling-code remotes and PosiLock® to electronically lock the door when closed, and UL325 safety sensors (the Protector System®) that auto-reverse if the infrared beam is broken.
Elite Series Strengths: Quiet, powerful DC motors with advanced features (smartphone control, backup battery, programmable panel). Good for large/heavy doors and frequent use.
Limitations: Higher cost; more features than needed for basic doors. Some functions (like Wi‑Fi) may require setup.

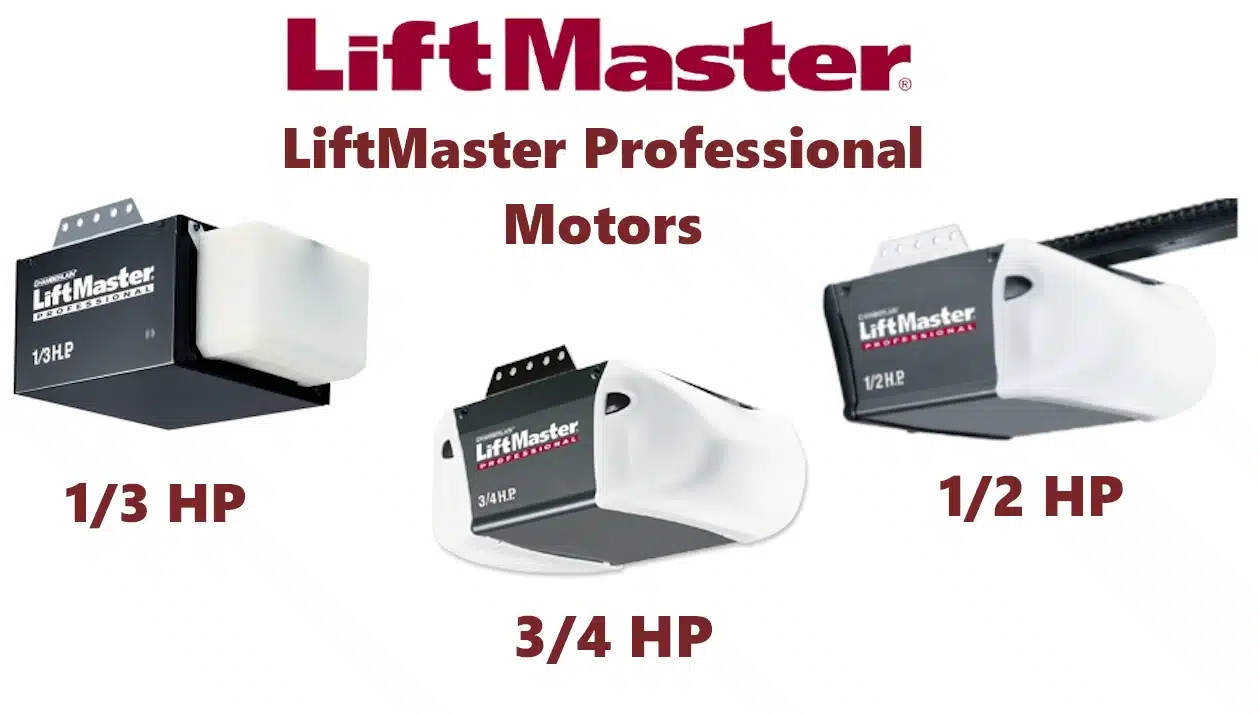

LiftMaster Professional 1/2 HP
Technical Specs: 1/2 HP motor (often AC for chain-drive models, or DC in newer belt models), typically chain-drive (some belt versions exist). Usually single 100 W light (some DC models have two). AC-powered (120 V, 60 Hz); no built-in battery. Uses Security+ 2.0® remotes (with optional add-on MyQ™ Wi-Fi gateway, LiftMaster 828LM/829LM, for smartphone control). Drive means vary by model (screw or chain).
Features: This basic pro series opener offers standard safety and convenience: UL325-compliant Protector System® infrared sensors with auto-reverse, Security+ 2.0 anti-hacking rolling-code remote controls, and PosiLock® door lock when down. It includes a wall-mounted control console (with light-on/off switch and opener button). Some 1/2 HP models offer a two-button console (able to close garage lights), and most can accept one or two pushbutton remotes (3-button visor or mini remotes). Battery backup is not standard on Professional chain drives (battery kits like the 485LM can be added on some models), and built-in Wi-Fi is generally absent (phone control requires the 828LM/829LM module).
Use Cases: A 1/2 HP opener can handle most single-car doors and some double doors. LiftMaster’s own guidelines note that 1/2 HP units support doors up to roughly 300 lbs. They are commonly used on moderate-weight doors (single doors up to ~350 lbs or light double doors) and typically open at ~7–8 in/sec. This power level suits standard residential use (a few cycles per day) but may struggle with very heavy or larger sectional doors.
Accessories: Compatible with standard LiftMaster/Chamberlain accessories. Typical remotes include the 3-button visor remote (371LM/372LM) and mini remote (373LM). Wireless keypads (e.g. model 374LM or Smart Keypad 877LM) add code entry. For smartphone control, add the myQ Internet Gateway (828LM or 829LM) to connect to the myQ network. Wall consoles (chamberlain 222LM/221LM series) control lights and door. If needed, LiftMaster battery-backup kits (485LM) can retrofit power backup.
Strengths/Limitations: Pro series 1/2 HP openers are affordable and reliable for typical doors. They are heavier-duty than basic consumer models but lack some modern amenities: most are louder (chain-drive) and have no built-in Wi-Fi or backup battery. They are less powerful than 3/4 HP units, so very heavy or high-cycle applications are better served by the Elite series instead.
LiftMaster Elite Series 3/4 HP
Technical Specs: Typically a 3/4 HP DC motor (often rated as HPS horsepower similar), belt-drive (e.g. model 8550W) or heavy-duty chain-drive (e.g. model 3575). Includes built-in battery backup (EverCharge) and dual 100 W lights. Comes with built-in Wi‑Fi/MyQ for smartphone connectivity. AC/DC motor, 115 V. Fast travel rate (~8–9 in/s).
Key Features: Combines all Elite advantages. For example, the LiftMaster 8550W (3/4 HP belt) “comes fully equipped with Security+ 2.0®, MyQ® Technology, Battery Backup and the Timer-to-Close feature”. It can complete ~40 full cycles on battery alone. It includes the Smart Control Panel® on the head for programming and diagnostics. Safety features include Protector System® sensors (auto-reverse on obstruction) and PosiLock® force-monitoring (electronically locks door). These openers also support Chamberlain/LiftMaster’s full accessory set (multi-button remotes, keypads, etc.).
Use Cases: Designed for heavy-duty use. The 3/4 HP Elite openers are rated for very heavy doors (up to ~500 lbs or more), such as wide double-car sectional or insulated carriage doors. They are ideal where quiet operation and backup power are desired (e.g. smart-home integration, long power-outage protection).
Accessories: Typically include a multi-function visor or visor-size remote (often a 3-button model) and the Smart Control Panel. Wireless keyless entry keypads (e.g. 377LM) and additional remotes are supported. Battery Backup is built-in (no separate kit needed). Since Wi-Fi is integrated, no external gateway module is needed for myQ.
Strengths/Limitations: These openers offer top-end power, quiet belt drives, and advanced features (smartphone control, auto-closing, diagnostics). They carry lifetime motor and belt warranties on many models. The main trade-offs are cost and complexity – they are more expensive and may be overkill for very simple applications.
LiftMaster Professional 1/3 HP
Technical Specs: 1/3 HP AC motor (often 1,625 RPM, as in LiftMaster 3130) with screw-drive rail. One standard 100 W bulb. AC-powered (120 V). Security+® 1-button remote included (older model of rolling code). Drive means: screw-drive rail with steel trolley (as in model 3130). No battery backup; no built-in Wi-Fi.
Key Features: Basic opener designed for light-duty use. It includes UL325 safety sensors (auto-reverse) and a Security+ 1-button remote. The screw-drive design is maintenance-free (lubricated steel screw) and permanent-lubricated gearbox for reliability. It has the Protector System® sensors and PosiLock® security common to LiftMaster products.
Use Cases: Intended for small, single-car garage doors (up to ~125 lbs). For example, older LiftMaster models (1345, 3110 or 3130) were used on very light doors or spas/sheds. Not suited for heavy, wide, or high-use doors. It’s often used in detached garages or as a space-saving wall-mount (some models wall-mount instead of rail). The table below shows typical maximum door weights by horsepower:
| HP Rating | Max Door Weight | Typical Doors |
|---|---|---|
| 1/3 HP | ≈ 0–125 lbs | Small single-car or light doors (e.g. single-panel steel) |
| 1/2 HP | ≈ 0–300 lbs | Standard single or light double doors |
| 3/4 HP | ≈ 0–500 lbs | Heavy double-car sectional or insulated doors |
Accessories: Comes with a single-button remote and a wall console. Supports additional LiftMaster remotes (3- or 4-button). A wireless keypad (377LM) can be added. No battery backup options (the opener stops during power loss). For smart control, an external myQ gateway (828LM) could technically be used, but such low-power units rarely get this.
Strengths/Limitations: The 1/3 HP opener is simple and durable (screw-drive gear), with good safety features (IR sensors, PosiLock). However, its very low power means it can only lift light doors. It has the fewest conveniences: no backup power, only 1 light, and older remote tech. Modern homes usually opt for at least 1/2 HP; 1/3 HP is typically found only in specialized or legacy installations.
Accessories Summary
All the above openers work with LiftMaster/Chamberlain accessories. Common items include:
- Remote Controls: 1- to 3-button visor or keychain remotes (e.g. 370LM series) compatible across models. Elite Series often include 3-button remotes and can support up to 10 total remotes via the Smart Control Panel.
- Wireless Keypads: LiftMaster 377LM (Security+ keypad with one-time codes) fits all.
- Wall Consoles: Standard lift/close consoles (221LM/222LM series) for inside control; some Elite models use the smart panel in the head instead.
- Battery Backup: Built-in on Elite belt drives (e.g. 8550W’s EverCharge, ~40-cycle backup). For basic Professional units, optional battery kits (485LM) can be added to some models if needed.
- Smart Home Modules: Wi-Fi is built-in on Elite models; for older Professional openers without Wi-Fi, add a LiftMaster 828LM/829LM myQ Gateway to enable smartphone control and alerts.
- Other: Safety sensors (supplied with all openers), etc. LiftMaster’s full accessory ecosystem (e.g. laser parking assist 975LM, additional smart remotes 893LM, etc.) is supported depending on the opener’s logic version.
Comparison at a Glance
| Feature | LiftMaster Prof. 1/3 HP | LiftMaster Prof. 1/2 HP | LiftMaster Elite (3/4 HP) |
| Motor/Drive | 1/3 HP AC (screw-drive) | 1/2 HP (AC chain or DC belt) | 3/4 HP DC (belt or heavy chain) |
| Battery Backup | No | Optional kit | Yes (built-in EverCharge) |
| Wi-Fi/MyQ | No (requires external 828LM) | No (uses 828LM/829LM) | Yes (built-in) |
| Light | 1 × 100 W | 1–2 × 100 W (model-dependent) | 2 × 100 W (adjustable delay) |
| Max Door Weight | ≈125 lbs | ≈300 lbs | ≈500 lbs |
| Typical Use | Small single doors, sheds | Standard homes (1–2 car doors) | Heavy/insulated doors, high-cycle use |
| Notable Fts | Ultra-simple, screw drive, UL325 safety | Proven reliability, basic security | Quiet DC motor (MVIS), Smart Panel, myQ, PosiLock, backup |
Each opener strikes a balance of power, cost, and features. The Elite Series is positioned as the cutting-edge, premium option (built-in Wi-Fi, backup, etc.) for those who want maximum convenience and durability. The Professional 1/2 HP fills the solid mid-range role for typical garages. The Professional 1/3 HP is an older, entry-level model suitable only for very light-duty applications (and is no longer produced by Chamberlain).
Sources: Specifications and feature details are drawn from LiftMaster/Chamberlain technical sheets and product literature. Door weight ratings are based on LiftMaster/Chamberlain guidelines. All features like Security+2.0, PosiLock, the Protector System, myQ technology, etc., are documented by the manufacturer.
